I Want to Program the Flash for My A7 or E5 Design Using an External PROM Programmer. Which File Do I Use? In most applications, you can download or program the external Flash connected to your A7 or E5 CSoC using the CSoC’s JTAG port. However, you may prefer to program to program the Flash device using an PROM programmer or PROM burner. For example, during volume manufacturing, you or your Flash supplier can program multiple devices in parallel. FastChip supports external PROM programmers by generating an Intel MCS-86-compatible Hex file. The following steps demonstrate how to create a Hex file suitable for an external PROM programmer.
© 2002 by Triscend Corporation. All rights reserved. |
Invoke FastChip Device Link and click Configuration.

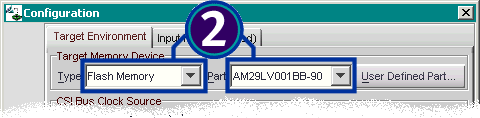

Select Flash Memory as the memory Type and then select the specific
Flash device and speed grade.
Set all of the other Configuration options required for your
application, including the clock source, the application code Hex file, etc.
To choose the Intel Hex file output format, expand Configuration
Image File Format by clicking the green plus sign (+) toward the right edge
of the dialog box.

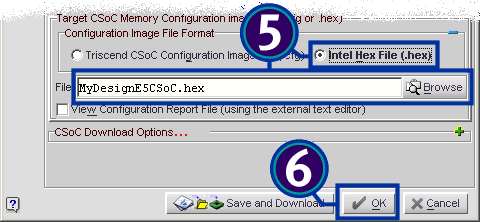

Choose Intel Hex File (.hex) and specify the location for the
output file.
Click OK to create the Intel MCS-86 Hex file and save it to
your hard disk.
